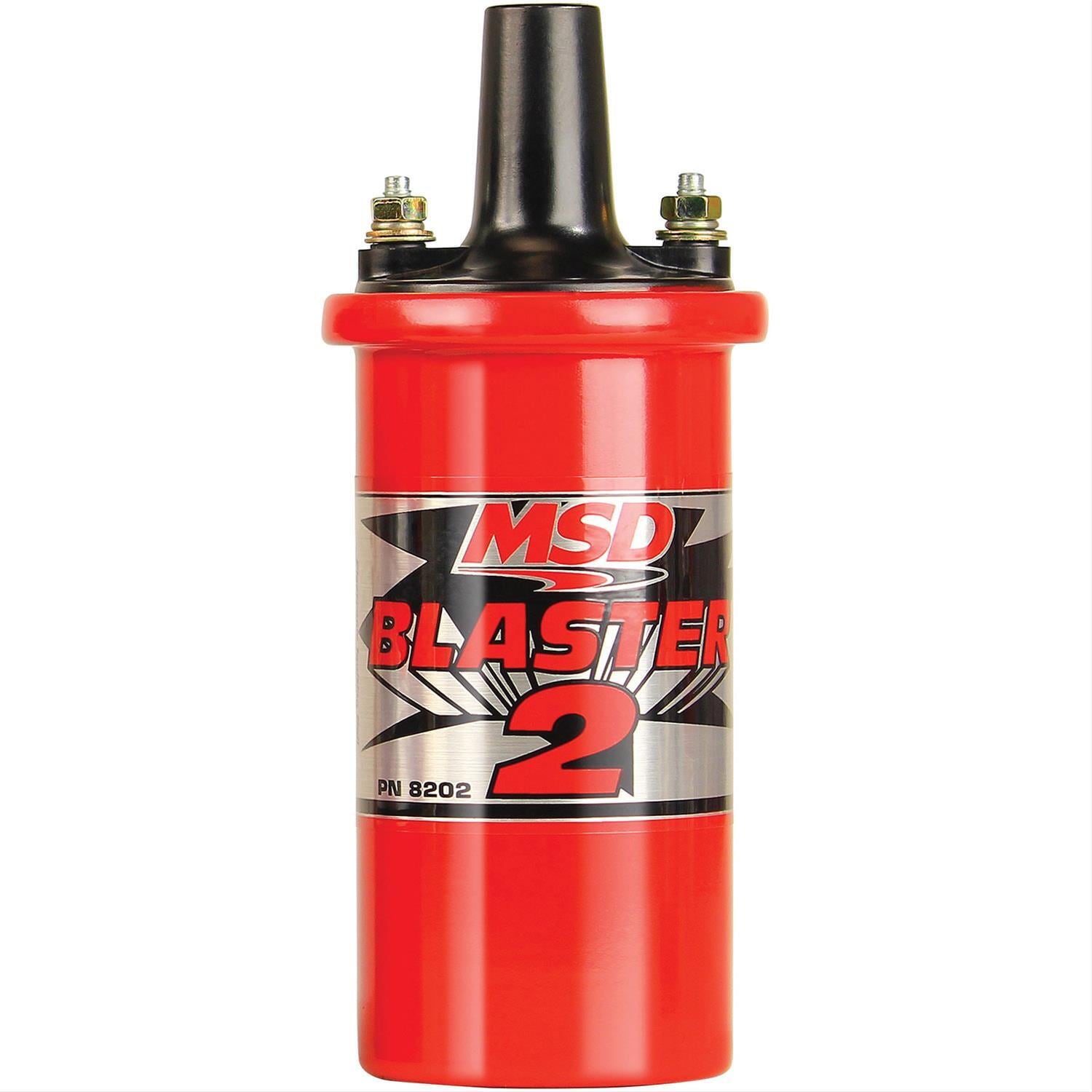

MSD Blaster 2 Ignition Coils 8202 イグニッションコイル　アメ車に

SOLD OUT

MSD Blaster 2コイル（MSD 8202）は、ストックイグニッションコイルよりもスパーク出力を大幅に改善するように設計されており、最大出力は45,000ボルトです。コイルは、ストックまたはMSDパフォーマンス点火システムとうまくペアリングし、優れた電圧上昇のための特別な100：1巻線を備えています。各コイルのアルキドタワーアセンブリは高い誘電特性を提供し、間隔の広い真ちゅう製の一次端子は火花の可能性を防ぐように設計されています。コイルもCARBに準拠しています。
Ignition Coil, Blaster 2, Canister, Round, Oil Filled, Red, 45,000 V
Brand:MSD Ignition
Manufacturer's Part Number:8202
Part Type:Ignition Coils
Product Line:MSD Blaster 2 Ignition Coils
Coil Style:Remote mount
Primary Resistance:0.700 ohms
Coil Internal Construction:Oil-filled
Coil Wire Attachment:Female/Socket
Coil Color:Red
Maximum Voltage:45,000 V
Turns Ratio:100:1
Secondary Resistance:4.70K ohms
Inductance:8.00 mH
Peak Current:140 mA
Spark Duration:350 uS
Mounting Bracket Included:No
Coil Wire Included:No
Ballast Resistor Included:No
Coil Shape:Round
Diameter (in):2.125 in.
Height (in):6.000 in.
Quantity:Sold individually.
Notes:This coil should only be mounted in a vertical upright position.
The MSD Blaster 2 coil (MSD 8202) is engineered to significantly improve spark output over stock ignition coils, offering a maximum output of 45,000 volts. The coil, which pairs well with stock or MSD performance ignition systems, features special 100:1 windings for excellent voltage build-up. Each coil’s alkyd tower assembly offers high dielectric characteristics, while wide-spaced brass primary terminals are designed to prevent the possibility of a spark. The coil also is CARB compliant.
